ALUMINIUN RAMP H 100

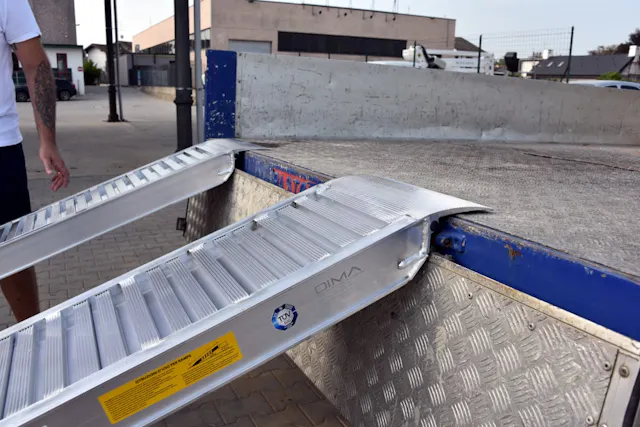

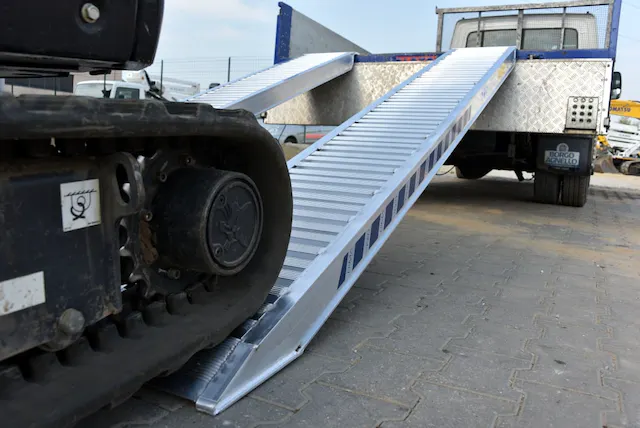

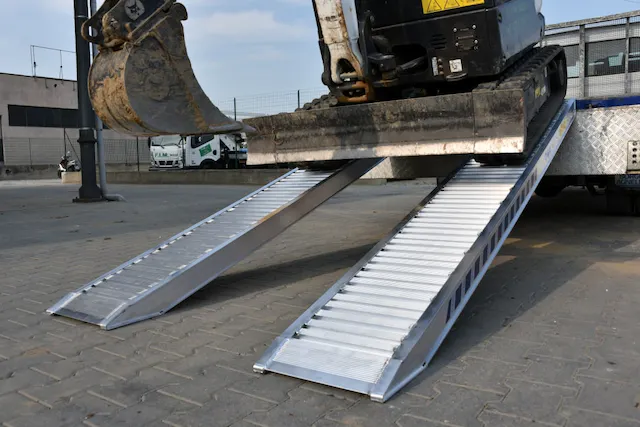

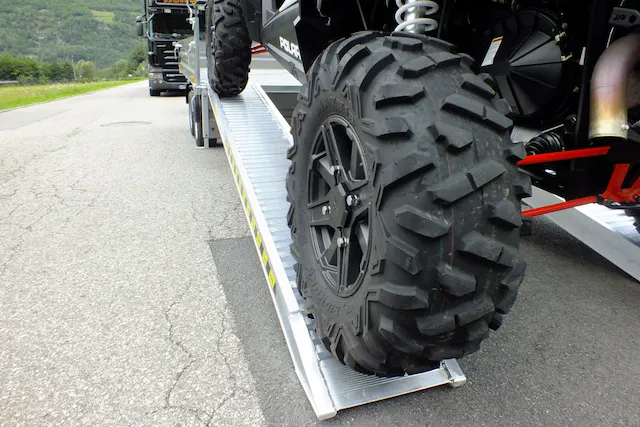

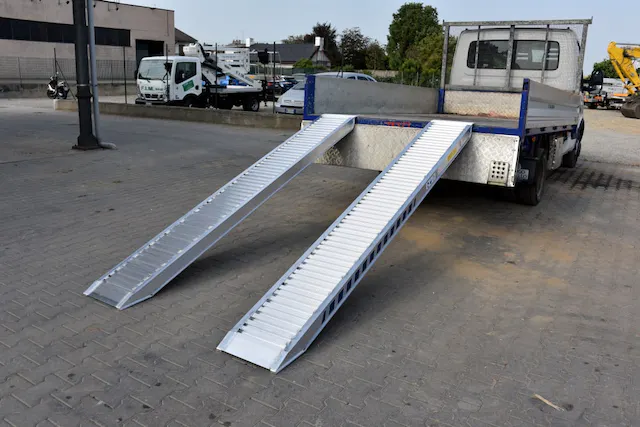

The H 100 series covers the needs of those who look for a versatile, very resistant and also not bulky product. Suitable for the sectors of earthmoving, gardening, and above all widely used in the trailer-automotive sector. It combines characteristics of lightness with important load capacities. Available with or without safety edges. Also available with non-slip surface, and with hook and tube connection.

CODE WITHOUT EDGES	LOADING CAPACITY PAIR IN KG / WHEELBASE 1000MM	LOADING CAPACITY PAIR IN KG / WHEELBASE 1250MM	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500MM	LENGTH IN MM	INTERNAL WIDTH IN MM	EXTERNAL WIDTH IN MM	WEIGHT PAIR IN KG
H 100/25S	3600	3600	3600	2500	300	370	39
H 100/30S	2800	3150	3350	3000	300	370	45
H 100/32S	2550	2850	3300	3200	300	370	48
H 100/35S	2200	2450	2750	3500	300	370	52
H 100/40S	1850	2000	2200	4000	300	370	60

CODE WITH EDGES	LOADING CAPACITY PAIR IN KG / WHEELBASE 1000MM	LOADING CAPACITY PAIR IN KG / WHEELBASE 1250MM	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500MM	LENGTH IN MM	INTERNAL WIDTH IN MM	EXTERNAL WIDTH IN MM	EDGE HEIGHT IN MM	WEIGHT PAIR IN KG
H 100/25B	3600	3600	3600	2500	300	355	30	38
H 100/30B	2800	3150	3350	3000	300	355	30	45
H 100/32B	2550	2850	3300	3200	300	355	30	47
H 100/35B	2200	2450	2750	3500	300	355	30	52
H 100/40B	1850	2000	2200	4000	300	355	30	59
